FEDrive is a program for transient analysis of model based on static results and data with transient course of forces. Program enables fast results calculation and presentation as 3D animation with isolines. Animation can be saved in AVI format, or as RGB frames. Transient course of forces can be present in XY graphs.
    Solver features Get on top
  • Easy task definition for transient calculation
  • Subcase superposition
  • Very fast solution
  • Optionally definition of calculation range and step
  • Displacement, velocity, acceleration and stress recalculation
  • Restart possibilities with own database.
    Results Presentation Features Get on top
  • Dynamic part deletion/addition during animation and visualization (show/no-show)
  • Multi-mode (wireframe, boundary, shading) operation during animation and visualization

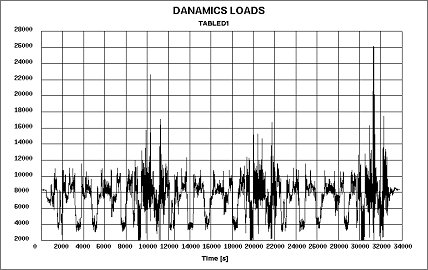

  • XY graphs
  • Quick access to any data without reloading files
  • Results superposition for any static and dynamics data
    Tools Get on top

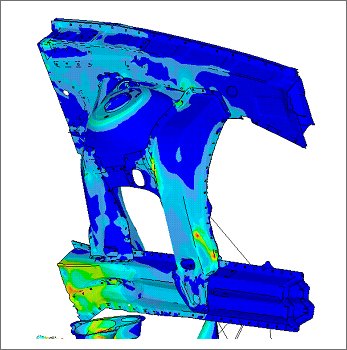

  • 3D visualization of analysis data (displacement, velocity, acceleration, stress)
  • Animation of whole model or wireframe
  • Direct transfer between 2D and 3D analysis
  • Movie generator (AVI format)
    Export Get on top
  • Postscript
  • GIF, RGB Files
  • AVI, Movie Film
  • Excel output
  • HTML presentation tool
    Interfaces Get on top
  • MSC/NASTRAN (op2, xdb and other formats)
  • SDRC UNIVERSAL-File (v 5.0 -6.x - Master Series 1.0-7.0)
  • FEStruct database
  • Other special interfaces (Experimental data, Excel formats, user specifically data)
    User Interface Get on top

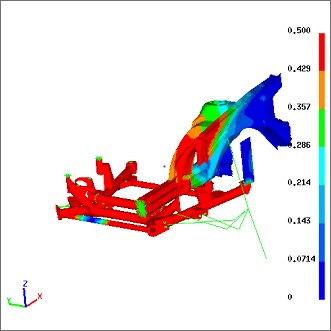

Advanced user interface provides the user with effective means for a very fast model analysis

  • Intuitive and graphical
  • Developed (own) language (UIL), enabling fast windows
  • Menu generating (based on OSF/Motif standard)
  • Point and click selection of variables
    Hardware Supports Get on top

UNIX-based computer workstations:

  • SGI
  • SUN
  • IBM
  • HP
  • Linux
  • (Windows NT version is in preparation)
